The Tern HSD P10 features a Bosch Performance Line motor with Smart System, providing up to 75 Nm of torque. It includes a 1x10-speed Shimano Deore groupset, an Intuvia 100 display, and a 545Wh battery for long-range performance.
The Tern HSD P10 features a Bosch Performance Line motor with Smart System, providing up to 75 Nm of torque. It includes a 1x10-speed Shimano Deore groupset, an Intuvia 100 display, and a 545Wh battery for long-range performance.
Tern

Tern HSD P10 in Green

£4,100.00
Size Guide

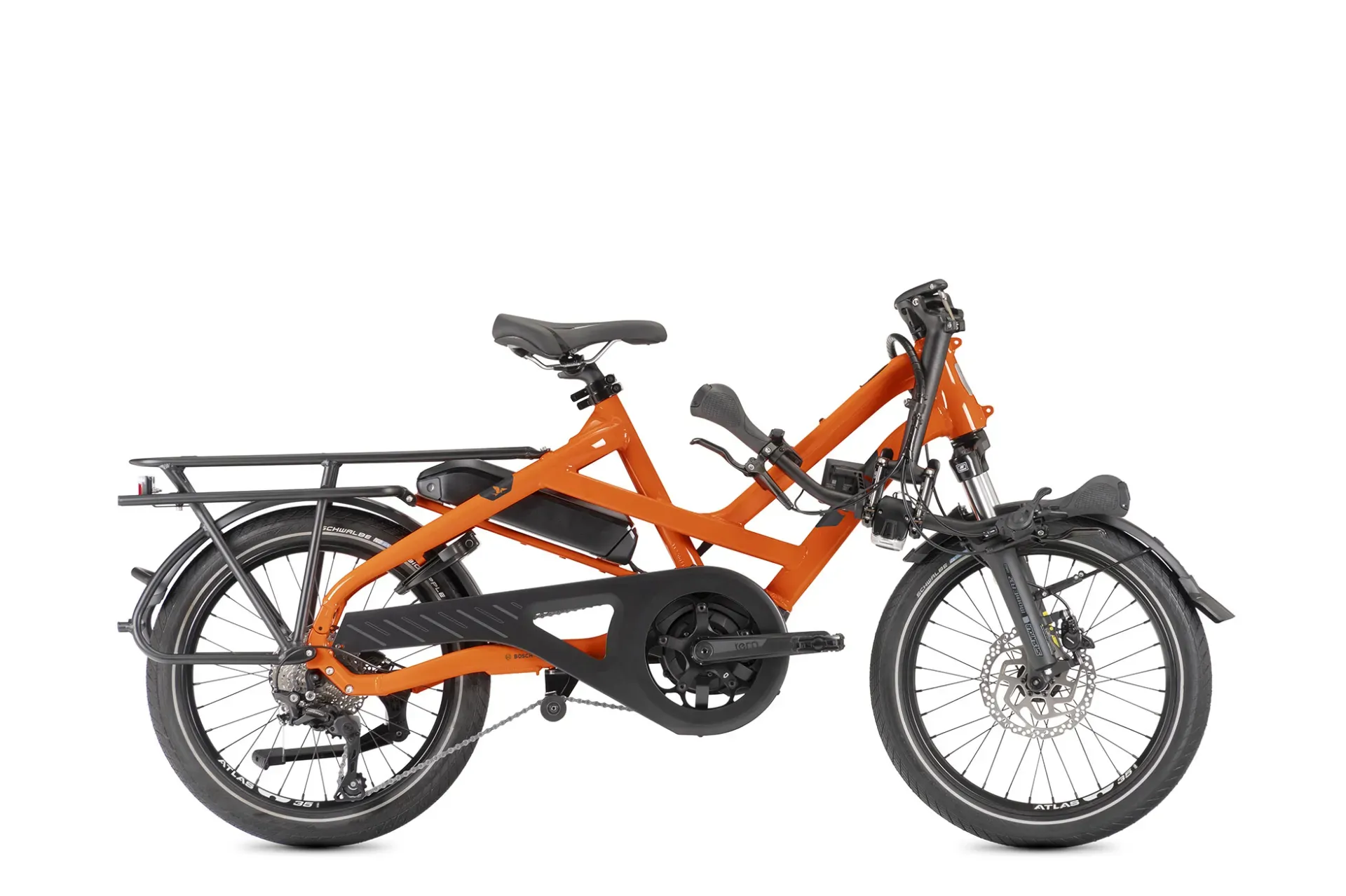

Tern HSD P10 in Orange
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

If you wish to cancel an order, you may do so provided that you exercise your right no longer than 14 days after the day on which you receive the goods.

Your right to return or cancel products does not apply to goods that are:
- Custom-built
- Ordered to your specification
- That have been clearly personalized

This doesn't affect your statutory rights if goods are faulty or not as described.

To exercise the right to cancel, you must make contact with Outspoken Cycles and notify us of your decision to cancel by a clear statement, including details of your name, address, details of the order you wish to cancel, including also your preferred contact details (phone number and email address).

You can cancel via email: team@outspokencycles.co.uk, or call 01223789606, or write to

Outspoken Cycles Ltd
The Bike Depot
140 Cowley Road
Cambridge
CB4 0DL

If you decide to cancel, you should return the goods to us at your cost within 14 days of such cancellation. We will reimburse you (by the method used to pay for the original transaction) the amount in relation to goods to which cancellation rights apply.

We reserve the right to make a refund less any costs relating to loss in value as a result of damage, mishandling, or other devaluation through the use of the goods. Refunds shall be made within 14 days of receipt of the returned goods, made using the same means of payment as used for the initial order transaction.

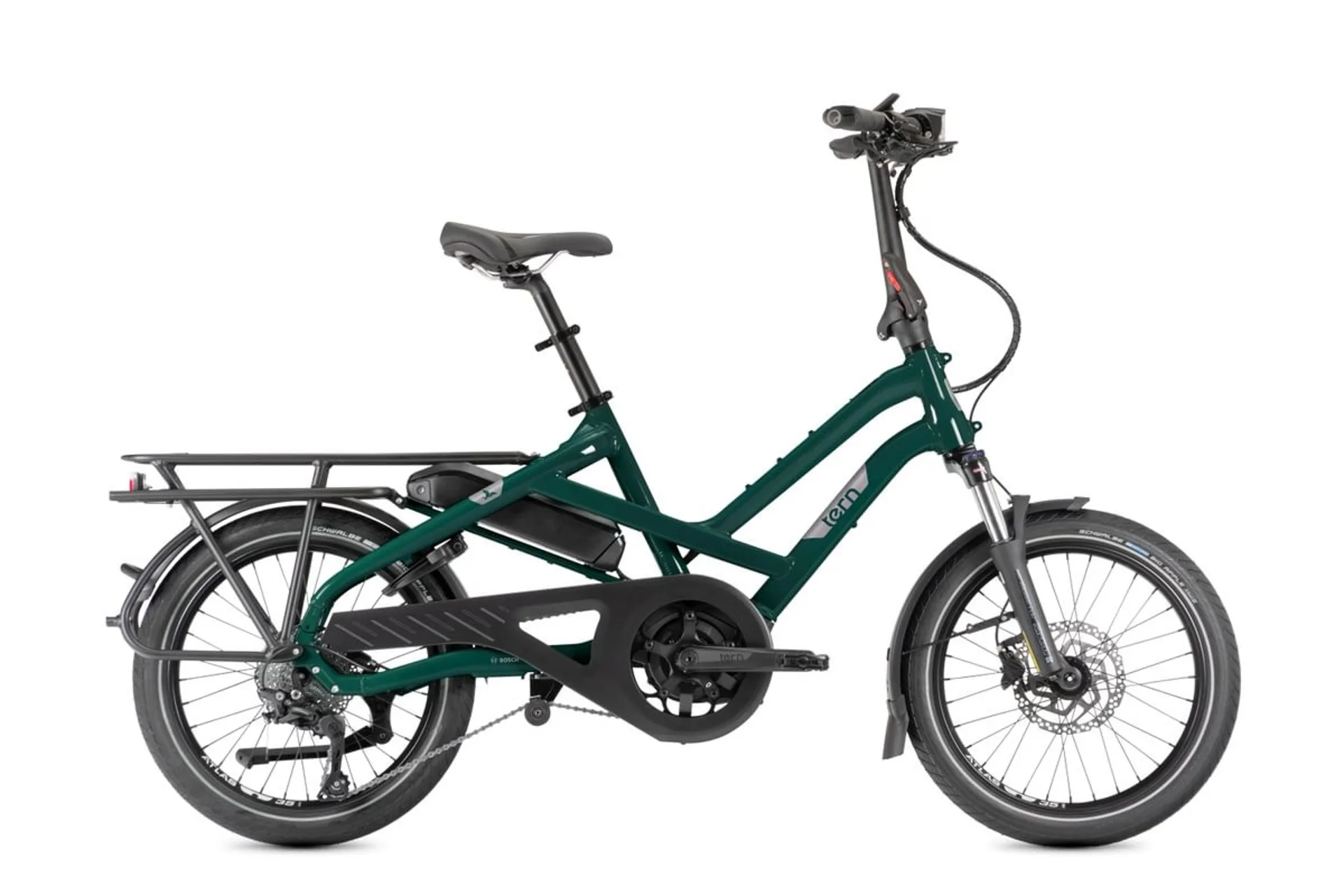

Tern HSD P10 in Green

Brand:Tern

Code:810067161220

The Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases pedalling power by up to 340%.

The Tern HSD P10 features a detachable and easy-to-understand Intuvia 100 display and a 1x10-speed Shimano Deore groupset with trigger shifter. Control all Smart System functions via the Bosch eBike Flow App: keep the e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customise riding modes, view bike information, and connect to dealers.

Features:

  • Bosch PowerPack 545 battery provides long range of up to 121 km (75 mi).
  • Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) allows for carrying one infant to a medium-sized adult passenger or cargo.
  • Fits riders 150 - 195 cm with an easily-adjustable cockpit.
  • Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight.
Technical Information
  • Generation
    Gen 2
  • Speeds
    1 x 10
  • Weight
    27.6 kg (60.8 lb)
  • Gear Inches
    30 - 97" (2.36 - 7.72 m)
  • Frame Size
    One size
  • Folding Size
    165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
  • Folding Time
    5 seconds
  • Distance: Seatpost to Handlebar
    54.5 - 62.5 cm (21.5 - 24.6 in)
  • Distance: Saddle to Pedal
    70 - 102.5 cm (27.6 - 40.4 in)
  • Suggested Rider Height
    150 - 195 cm (59.1 - 76.8 in)
  • Max Gross Vehicle Weight
    180 kg (396.8 lb)
  • Max Rider Weight
    120 kg (264.6 lb)
  • Frame
    Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
  • Fork
    Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
  • Handlepost
    Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
  • Stem
    Tern Andros, adjustable, forged construction, patented technology
  • Headset
    Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
  • Handlebar
    Tern Sweep, 6061-AL, Tern Andros adapted
  • Grips/Bar Tape
    Ergon
  • Saddle
    Tern Upright by Velo
  • Seatpost
    Tern Telescope, 34.9/30.9 mm, 2014-AL
  • Seatpost Clamp
    Tern Collar
  • Brakes
    Front: Tektro, hydraulic disc, 180 mm rotor; Rear: Tektro, hydraulic disc, 160 mm rotor
  • Brake Levers
    Tektro, hydraulic disc
  • Wheels
    Tern Atlas H, cargo wheel
  • Hubs
    Front: Novatec, Thru-axle, sealed bearings; Rear: Novatec, sealed cartridge bearing, disc
  • Spokes & Nipples
    Stainless steel
  • Rims
    Tern Atlas H, wide 35 mm
  • Tyres
    Schwalbe Big Apple, 55-406, puncture protection, Reflex
  • Shifter
    Shimano Deore, 1 x 10 spd, trigger
  • Rear Derailleur
    Shimano Deore Shadow+
  • Crankset
    Tern HSD custom
  • Cassette/Freewheel
    Shimano 11-36T, 10 spd
  • Bottom Bracket
    Motor integrated
  • Chain
    KMC 10 spd, for eBike, EPT corrosion resistant coating
  • Pedals
    Urban with non-slip surface
  • Motor
    Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); 20 mph (US)
  • Battery
    Bosch PowerPack 545
  • Display

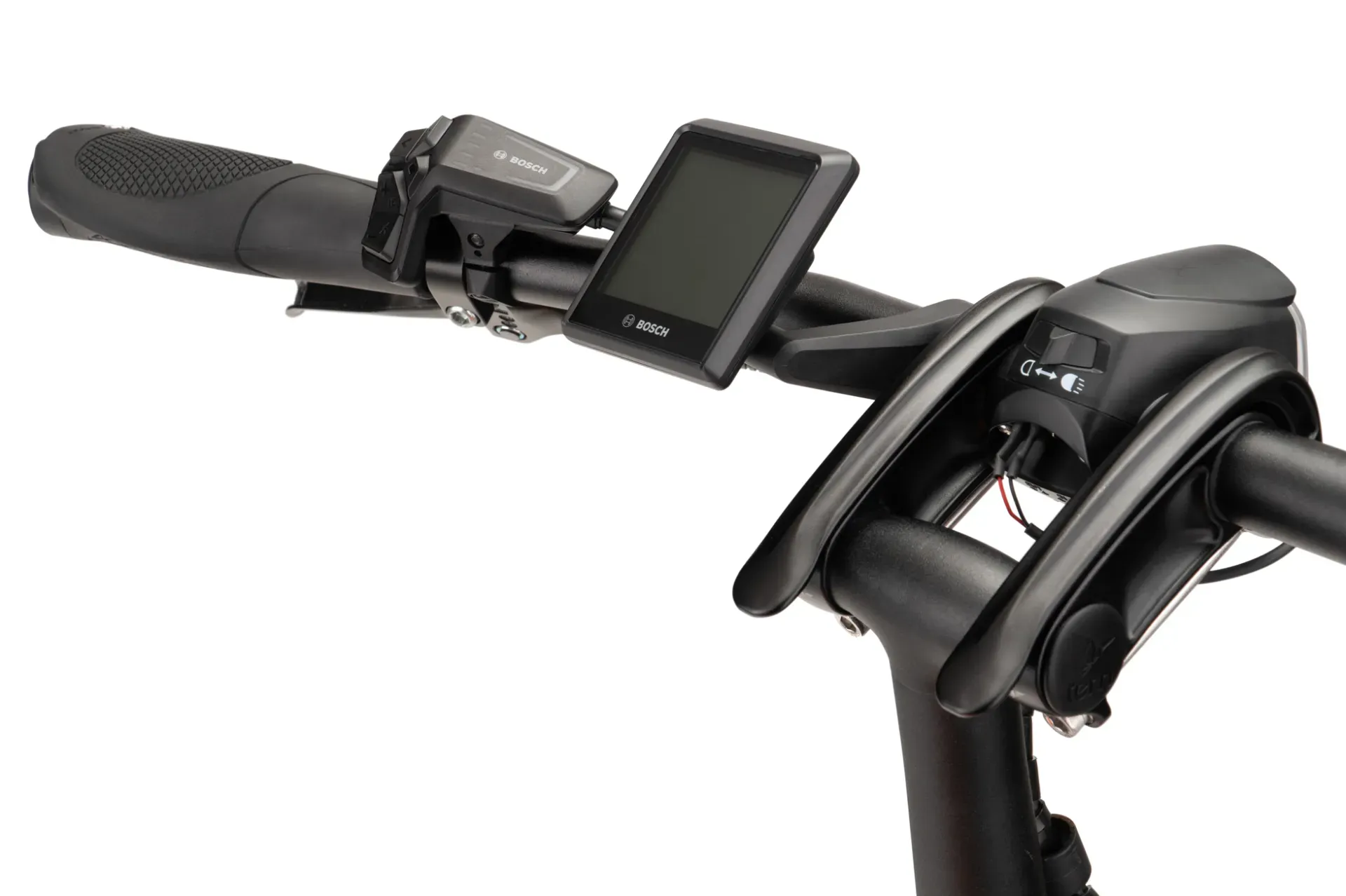

    Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
  • Range
    545 Wh: 51-121 km (32-76 mi)
  • Charger
    220V, 4A (EU); 100-240V, 4A (US)
  • Bell
    Pitch Plus, brass
  • Chainguard
    Tern Custom, full chain cover
  • Kickstand
    Ursus, rear mount
  • Luggage Socket
    Combo Mount
  • Lights
    Front: Tern Valo Direct, 190 lumens; Rear: Herrmans H-Trace, for eBike
  • Fenders
    SplashGuard, stainless hardware
  • Rack
    Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
  • Frame Lock
    ABUS, keyed-alike with Bosch battery
