The Marin DSX is a flat bar gravel bike based on the Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks.
The Marin DSX is a flat bar gravel bike based on the Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks.
Marin

Marin Dsx 2 in Clay and Orange

£1,149.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

If you wish to cancel an order, you may do so provided that you exercise your right no longer than 14 days after the day on which you receive the goods.

Your right to return or cancel products does not apply to goods that are:
-Custom-built,
-Are ordered to your specification,
-that have been clearly personalized.
This doesn't affect your statutory rights if goods are faulty or not as described.

To exercise the right to cancel, you must make contact with outspoken Cycles and notify us of your decision to cancel by a clear statement, including details of your name, address, details of the order you wish to cancel, including also your preferred contact details (phone number and email address).

You can cancel via email: team@outspokencycles.co.uk, or call 01223789606, or write to

Outspoken Cycles Ltd
The Bike Depot
140 Cowley Road
Cambridge
CB4 0DL

If you decide to cancel, you should return the goods to us at your cost within 14 days of such cancellation. We will reimburse you (by the method used to pay for the original transaction) the amount in relation to goods to which cancellation rights apply.

We reserve the right to make a refund less any costs relating to loss in value as a result of damage, mishandling, or other devaluation through the use of the goods. Refunds shall be made within 14 days of receipt of the returned goods, made using the same means of payment as used for the initial order transaction.

Marin Dsx 2 in Clay and Orange

Season:2026

Brand:Marin

Code:7406930CLAYORG

The Marin DSX is a modern flat-bar gravel bike designed for versatile adventures.

The DSX is a flat bar gravel bike based on the Gestalt X drop bar platform, featuring Series 3 aluminum frames and carbon forks. It offers large tire clearance, low standover height, hydraulic disc brakes, and 1x drivetrains, all with the comfort and heads-up positioning of a flat handlebar. This bike combines mountain bike sensibilities in a flat bar package, capable of fast commutes, long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.

Marin DSX models feature butted and formed Series 3 6061 aluminum frames with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets. The DSX (base) model uses a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets.

The DSX comes stock with 700x45mm tires, with room for 29x2.1” knobbies. Dropper posts are quickly becoming standard for gravel racers and riders who spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades.

Features:

  • Shimano Deore 6100 1x12 drivetrain
  • Tektro R285 hydraulic disc brakes
  • Flat Bar
  • Fitness/Transit
  • 700C wheels
  • Gravel/Beyond Road capability
  • Dual Sport design
  • Aluminum frame
Technical Information
  • Frame
    Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • Fork
    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
  • Rim
    Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
  • Hub Rear
    Forged Aluminum, 142x12mm, Disc Specific, 32H
  • Hub Front
    Forged Aluminum, 100x12mm, Disc, 32H
  • Spokes Nipples
    14g Black Stainless Steel
  • Tires
    WTB Riddler, 700Cx45mm
  • Derailleur Rear
    Shimano Deore, RDM6100, 12-Speed
  • Shift Lever
    Shimano Deore, SLM6100, 12-Speed
  • Crankset
    Forged Aluminum, 42T Steel Narrow Wide Chainring
  • Bottom Bracket
    Sealed Outboard Bearing
  • Chain
    KMC X12
  • Cassette
    SunRace, 12-Speed, 11-51T
  • Brakes Front
    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
  • Brakes Rear
    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
  • Brake Levers
    Tektro Hydraulic
  • Handlebar
    Marin MiniRiser
  • Stem
    Marin 3D Forged Alloy
  • Grips
    Marin MTB
  • Headset
    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • Seatpost
    Marin Alloy
  • Saddle
    Marin DSX
  • Pedals
    Nylon Platform
  • Extras
    Bolt-On Thru-Axles F and R

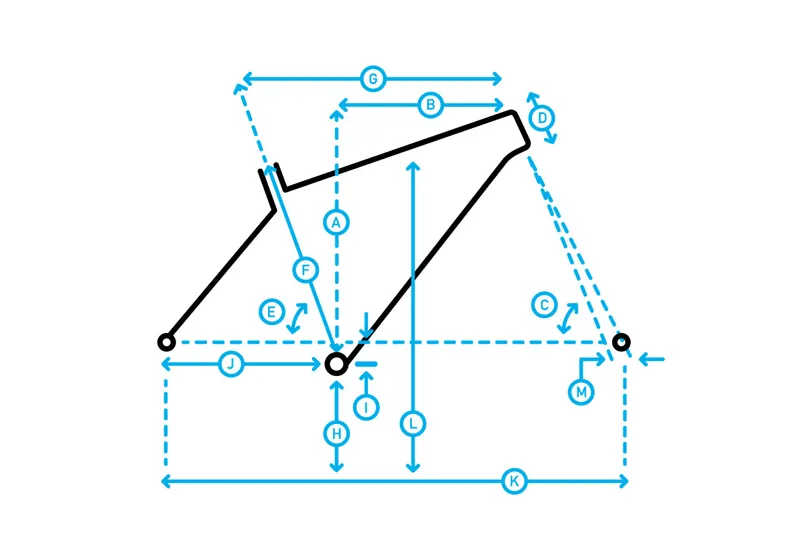

  • Stack
    S: 544.4, M: 572.5, L: 600.6, XL: 628.7
  • Reach
    S: 380, M: 405, L: 420, XL: 435
  • Head Tube Angle
    S: 69.5°, M: 69.5°, L: 69.5°, XL: 69.5°
  • Head Tube Length
    S: 120, M: 150, L: 180, XL: 210
  • Seat Tube Angle
    S: 74°, M: 74°, L: 74°, XL: 74°
  • Seat Tube Length
    S: 430, M: 480, L: 520, XL: 558
  • Top Tube Effective
    S: 536.1, M: 569.2, L: 592.2, XL: 615.3
  • BB Height
    S: 279.5, M: 279.5, L: 279.5, XL: 279.5
  • BB Drop
    S: 80, M: 80, L: 80, XL: 80
  • Chain Stay
    S: 425, M: 425, L: 425, XL: 425
  • Wheel Base
    S: 1024.42, M: 1060, L: 1085.4, XL: 1110.9
  • Stand Over Height
    S: 658.76, M: 700.51, L: 730.39, XL: 758.5
  • Fork Offset
    S: 50, M: 50, L: 50, XL: 50
  • Seatpost Diameter
    27.2
  • Handlebar Width
    640
  • Stem Length
    70
  • Crank Length
    170
