The DSX is a flat bar gravel bike based on the Gestalt X drop bar platform, featuring Series 3 aluminum frames and carbon forks.
The DSX is a flat bar gravel bike based on the Gestalt X drop bar platform, featuring Series 3 aluminum frames and carbon forks.
Marin

Marin DSX 1 in Green

£899.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

If you wish to cancel an order, you may do so provided that you exercise your right no longer than 14 days after the day on which you receive the goods.

Your right to return or cancel products does not apply to goods that are:
-Custom-built,
-Are ordered to your specification,
-that have been clearly personalized.
This doesn't affect your statutory rights if goods are faulty or not as described.

To exercise the right to cancel, you must make contact with outspoken Cycles and notify us of your decision to cancel by a clear statement, including details of your name, address, details of the order you wish to cancel, including also your preferred contact details (phone number and email address).

You can cancel via email: team@outspokencycles.co.uk, or call 01223789606, or write to

Outspoken Cycles Ltd
The Bike Depot
140 Cowley Road
Cambridge
CB4 0DL

If you decide to cancel, you should return the goods to us at your cost within 14 days of such cancellation. We will reimburse you (by the method used to pay for the original transaction) the amount in relation to goods to which cancellation rights apply.

We reserve the right to make a refund less any costs relating to loss in value as a result of damage, mishandling, or other devaluation through the use of the goods. Refunds shall be made within 14 days of receipt of the returned goods, made using the same means of payment as used for the initial order transaction.

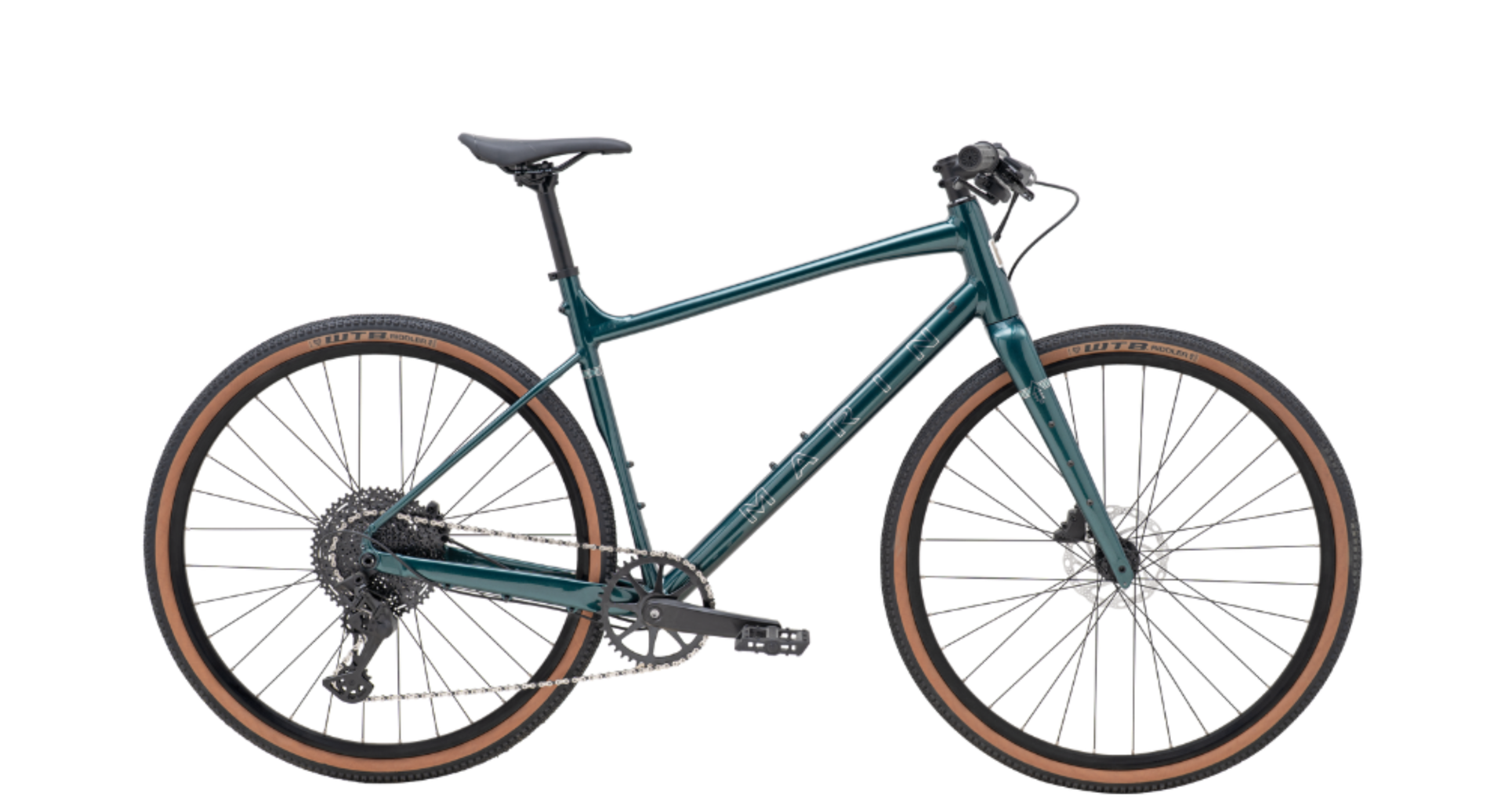

Marin DSX 1 in Green

Season:2026

Brand:Marin

Code:7406920GRN

The DSX is a flat bar gravel bike based on the Gestalt X drop bar platform.

These bikes feature Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains, offering the comfort and heads-up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package make it capable of fast commutes, long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.

Hopping up to a higher-spec Series 3 aluminum frame and a carbon fibre fork, the DSX 1 is lighter and slightly stiffer than the base model bike. There’s also an 11-speed 1X Tektro drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

Features:

  • Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
  • Comes stock with 700x45mm tires, with room for 29x2.1” knobbies.
  • Internal dropper post routing for easy upgrades.
Technical Information
  • Frame
    Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount
  • Fork
    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
  • Rims
    Marin Aluminum Double Wall, Disc Specific
  • Hub, Rear
    Forged Aluminum Alloy, Disc, 32H
  • Hub, Front
    Forged Aluminum Alloy, Disc, 32H
  • Spoke, Nipples Nipples
    14g Black Stainless Steel
  • Tires
    WTB Riddler, 700Cx45mm
  • Derailleur, Rear
    Tektro Gemini, SL-M5100, 11-speed
  • Shift Lever
    Tektro Gemini, SL-M5100, 11-speed
  • Crankset
    Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 42T Chainring
  • Bottom Bracket
    Sealed Cartridge Bearings, Square Taper
  • Chain
    KMC X9
  • Cassette
    Tektro Gemini,, CS-M5100, 11-Speed, 11-50T
  • Brake, Front
    Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor
  • Brake, Rear
    Tektro HD-R285 Flat Mount Hydraulic , 160mm Rotor
  • Brake Levers
    Tektro Hydraulic
  • Handlebar
    Marin Mini Riser
  • Stem
    Marin 3D Forged Alloy
  • Grips
    Marin MTB
  • Headset
    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • Seatpost
    Marin Alloy
  • Saddle
    Marin DSX
  • Pedals
    Nylon Platform

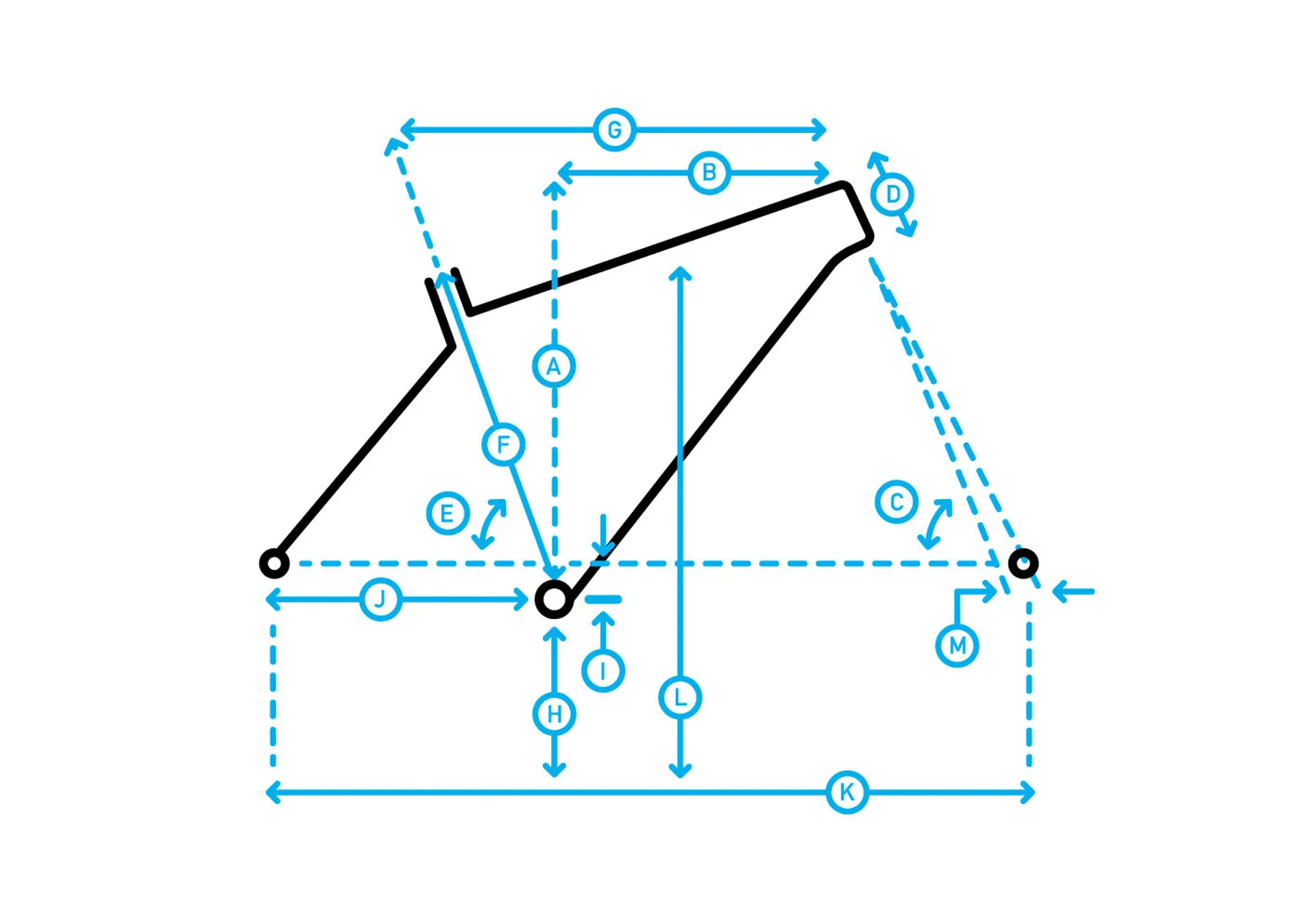

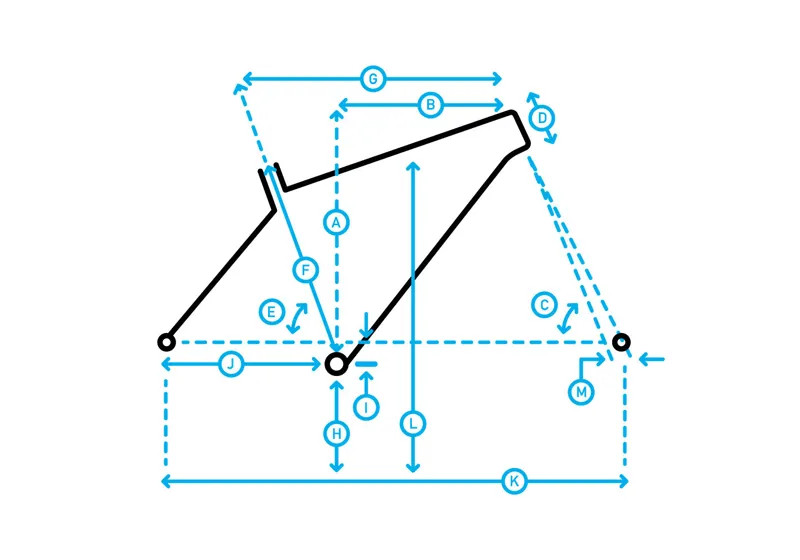

  • Stack
    S: 544.4, M: 572.5, L: 600.6, XL: 628.7
  • Reach
    S: 380, M: 405, L: 420, XL: 435
  • Headtube Angle
    S: 69.5°, M: 69.5°, L: 69.5°, XL: 69.5°
  • Headtube Length
    S: 120, M: 150, L: 180, XL: 210
  • Seattube Angle
    S: 74°, M: 74°, L: 74°, XL: 74°
  • Seattube Length
    S: 430, M: 480, L: 520, XL: 558
  • Toptube Effective
    S: 536.1, M: 569.2, L: 592.2, XL: 615.3
  • BB Height
    S: 279.5, M: 279.5, L: 279.5, XL: 279.5
  • BB Drop
    S: 80, M: 80, L: 80, XL: 80
  • Chainstay
    S: 425, M: 425, L: 425, XL: 425
  • Wheelbase
    S: 1024.42, M: 1060, L: 1085.4, XL: 1110.9
  • Standover Height
    S: 658.76, M: 700.51, L: 730.39, XL: 758.5
  • Fork Offset
    S: 50, M: 50, L: 50, XL: 50
  • Seatpost Diameter
    27.2
  • Handlebar Width
    640
  • Stem Length
    70
  • Crank Length
    170
