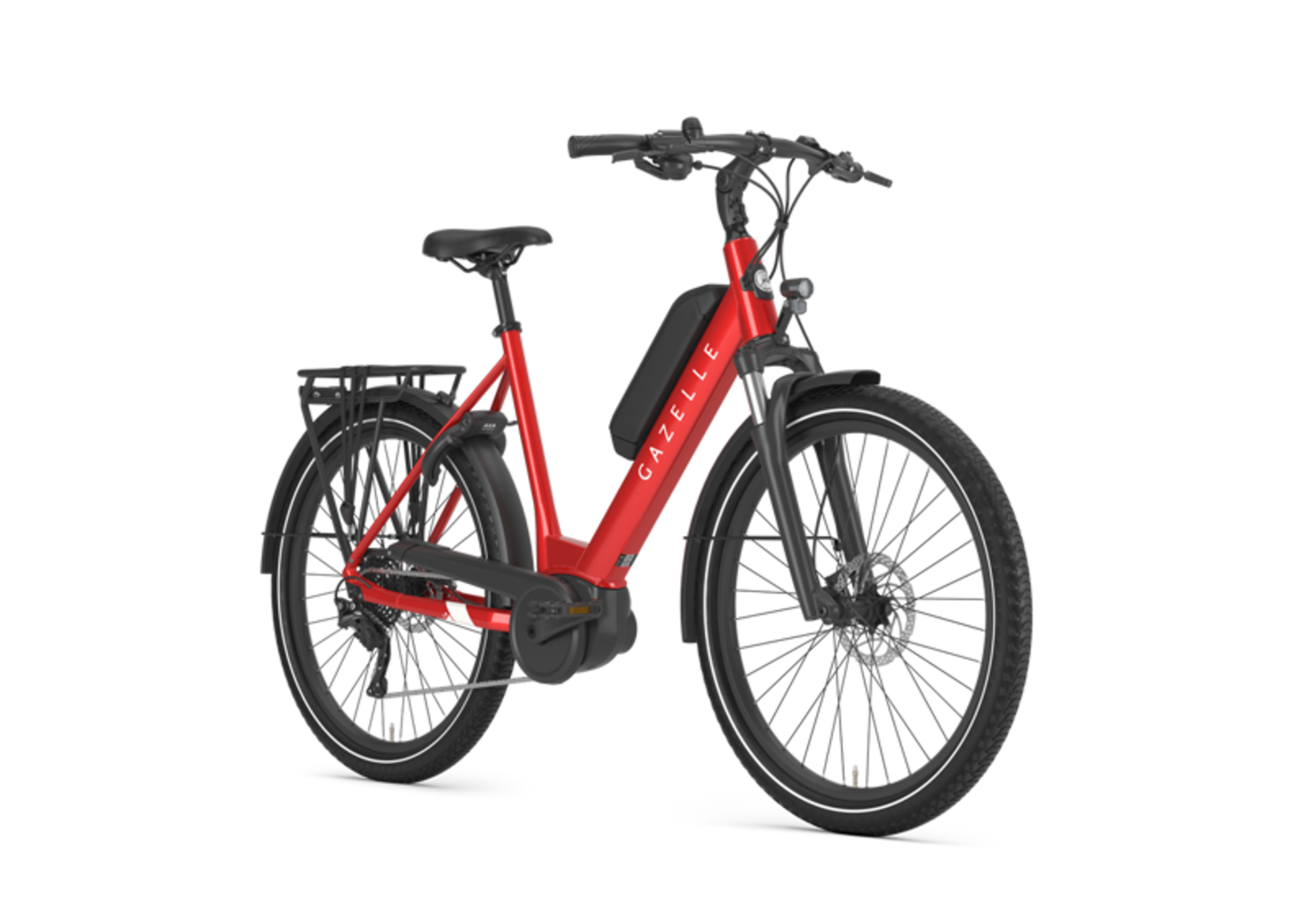

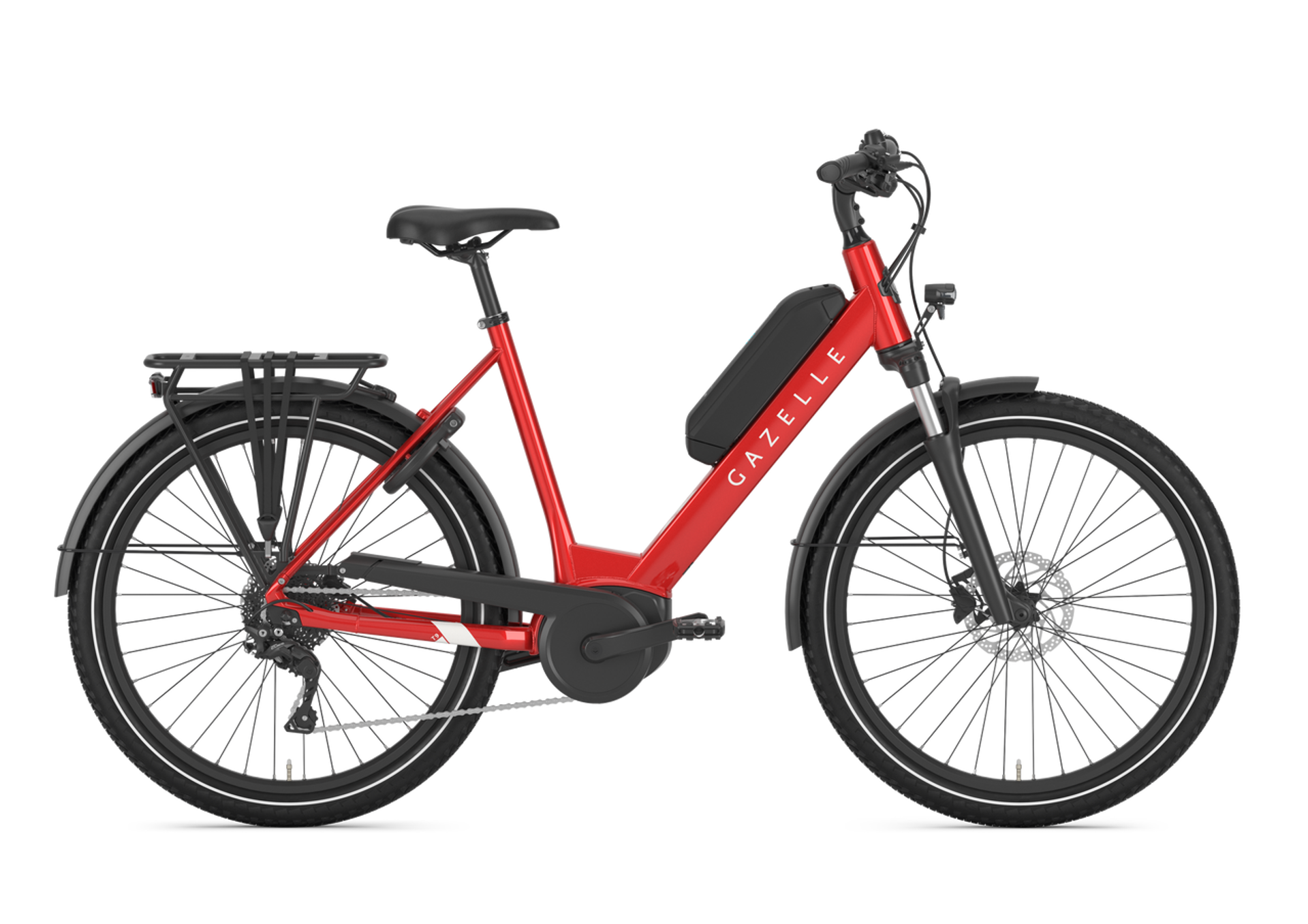

Gazelle Medeo T9 HMB L45 in Champion Red

Brand:Gazelle

Code:G4279

The Medeo T9 HMB is an elegant e-bike with sporty DNA, offering powerful motor, 9-speed derailleur, and plenty of riding comfort.

With the tried-and-tested Shimano derailleur gearing system, you can choose the gear that feels right for you, at any time. Shimano guarantees reliable shifting performance and years of flawless operation. You have 9 gears at your disposal that are easy to operate from the handlebars. The chain is specially reinforced for e-bikes and is designed to cope with the forces generated when shifting gears under load.

With an advanced e-bike like the Medeo T9 HMB, you want to be able to brake safely without even thinking about it. Hydraulic disc brakes are therefore indispensable, as they provide the braking power and the precision for controlled braking at all times — even when it's raining or the roads are wet.

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimises your bike's range. You can choose the battery capacity that suits you: 400 or 500 Wh. The battery is secured with a lock on your rear carrier and is easily removed using your bike key. Convenient, as you can charge the battery either on or off the bike.

The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.

In terms of comfort, the Medeo T9 HMB is a great choice. The e-bike has wide, anti-puncture tyres that make it a little bit easier to ride over bumps in the road surface. In addition, the bike has a front suspension fork. A cobbled path will feel like cycling on a smooth tarmacked road. With such great riding comfort, you'll also get off the bike fresher and fitter after your commute or a long ride.

The battery is mounted on the frame for a sporty look and feel. The battery on the Medeo T9 HMB is also strategically positioned. This creates a low step-through on the version without top tube — allowing you to get on and off with ease.

Technical Information
  • Watt-hours
    545 Wh, 400 Wh
  • Capacity
    14,4 Ah, 11,1 Ah
  • Ebike battery charging time with 2A charger
    7 h 30 m, 6 h 30 m
  • Ebike battery charging time with 4A charger
    4 h 54 m, 3 h 30 m
  • Battery position
    on the frame
  • Battery brand
    Bosch
  • Battery model
    Ontube
  • Voltage
    36V
  • Eco
    155 km, 115 km
  • Tour
    95 km, 65 km
  • Auto
    75 km, 50 km
  • Turbo
    60 km, 45 km
  • Color
    Champion red gloss, ink blue gloss, thunder grey gloss
  • Fork suspension
    Telescope, spiral spring
  • Bike weight description
    Excl. battery
  • Weight (kg)
    23.1 kgs
  • Weight
    23.1 excl. battery
  • Bike Max. Total Weight (kg)
    130
  • Sitting Position
    Sportive
  • Frame description
    Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
  • Frame material
    Aluminum
  • Cockpit Cable Integration
    Yes
  • Frame shape
    High-Step, Low-Step
  • Frame Size CM
    40, 45, 50, 55, 60
  • Fork
    SR Suntour MOBIE A32 DS
  • Fork description
    Suntour MOBIE A32 DS
  • Fork Material
    Aluminum
  • Fork lockout
    Yes
  • Front wheel
    38
  • Front rim
    Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
  • Rear rim
    Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
  • Front hub
    Shimano
  • WheelSize Front
    27.5"
  • Wheels Tire Front Etrto
    62-584
  • Front tyre
    Continental Contact Plus
  • Rear tyre
    Continental Contact Plus
  • Wheels Tire Front Description
    Continental eContact Plus
  • Brand shifters
    Shimano
  • Front chainwheel
    38
  • Cassette Range
    11-36
  • Gear Type
    Derailleur
  • Number of gears
    9
  • Rear derailleur
    Shimano Deore
  • Drivetrain
    Chain
  • Front Brake Type
    Hydraulic disc brake
  • Brake sytem code
    S9
  • Front Brake Brand
    Shimano
  • Primary Rear Brake Model
    BR-MT200
  • Front brake
    Shimano BR-MT200, 180 mm
  • Rear brake
    Shimano BR-MT200, 160 mm
  • Rear Brake Lever
    BLMT200
  • Handlebar
    Herrmans DD36, plastic wear-resistant handlebar grips for a firm grasp
  • Stem adjustable
    Yes
  • Cockpit Handlebar Grip Brand
    Herrmans
  • Saddle
    DDK
  • Seatpost suspension
    No
  • Front light
    AXA Compactline 35
  • Front Light Energy Source
    Battery
  • Front Light Lux
    35
  • Rear Light Energy Source
    Battery
  • Rear light
    AXA Blueline
  • Motor
    Bosch Smart System Active Line Plus
  • System Model
    Active Line Plus
  • Ebike System Brand
    Bosch Smart System
  • Ebike Engine Position
    Mid
  • Ebike Max Speed kmh
    25
  • Ebike Max Speed mph
    15
  • Engine Max Torque (Nm)
    50
  • Charger
    Bosch
  • Ebike Battery Charger Description
    2 Ah
  • Display
    Bosch Purion 200
  • Ebike Walk Assist
    Yes
  • Display Type
    LCD
  • Lock
    Axa
  • Lock brand
    Axa
  • ART classification
    ART**
  • Kickstand
    Ursus Mooi
  • Rear carrier description
    Aluminum MIK system carrier
  • Carrier MIK Profile
    Yes
  • Rear carrier max load (kg)
    25
  • Rear carrier
    Yes
